Máy nén Trane TTA100RD00PA, TTA200RD00PA

Thương hiệu : Trane

Liên hệ

Máy nén Trane TTA100RD00PA, TTA200RD00PA

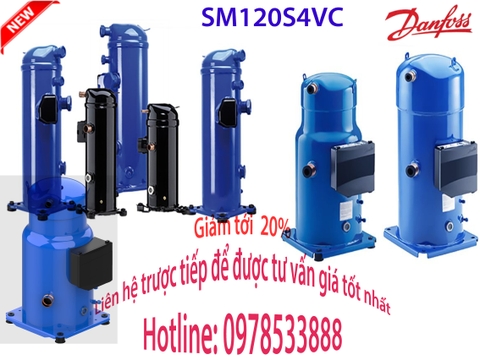

Máy nén Danfoss SM120S4VC

Mounting torque [Nm]

15 Nm

Nominal cooling capacity 60 kBTU/h

102800Btu/h

Nominal cooling capacity at 50Hz

30.1 kW

Nominal cooling capacity at 60Hz

 kW

Number of starts per hour [Max]

12

Oil charge [L]

3.3 L

Oil equalization

1-3/4'' Rotolock

Oil reference

160P

Oil type

Mineral

Packaging height [mm]

580 mm

Packaging length [mm]

380 mm

Packaging weight [Kg]

73 kg

Packaging width [mm]

320 mm

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

Refrigerant

R22

Refrigerant charge [kg] [Max]

7.9 kg

RLA

20.7 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Suction connection height [mm]

278 mm

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

193.5 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

2 Nm

Torque power [Nm]

3 Nm

Total height [mm]

540 mm
